Producto:

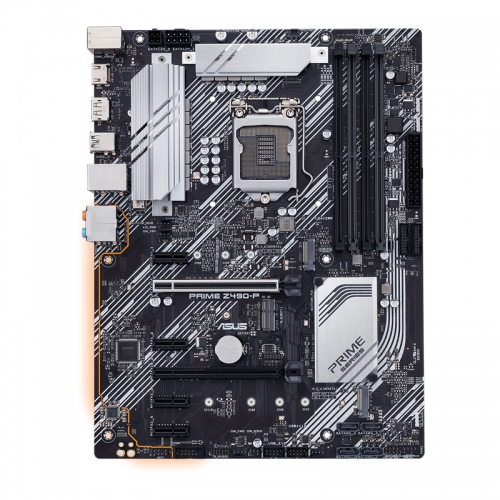

Prime Z490-P
CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z490
Memoria
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráfica
Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Soporte Multi-GPU
Supports AMD 2-Way CrossFireX Technology
Puertos de Expansión
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode) *1
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1
Almacenamiento
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
LAN
Realtek® RTL8111H
Wireless Data Network
M.2 slot only (Key E) (Support CNVI & PCIe interface)*
*Wi-Fi module is sold separately.
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Puertos USB
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 8 )
4 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
AI Charger
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header

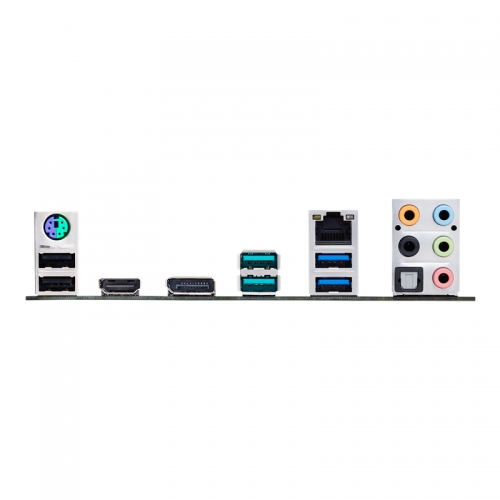

Puertos posteriores I/O
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O
1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

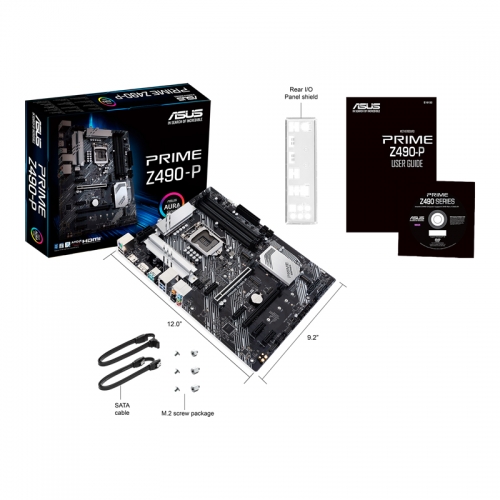

Accesorios
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manejo
WOL by PME, PXE
Sistema operativo
Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Nota
*1 Support PCIe bifurcation for RAID on CPU function.
*2 When a device in SATA mode is installed on the M.2_1 slot, SATA6G_2 port cannot be used.
*3 The USB_E1 port, USB_E2 port, ADD_GEN 2 header and the two RGB headers share the bandwidth. But the ADD_GEN 2 header and the two RGB headers will affect transfer rate only when you adjust their lighting effect.
