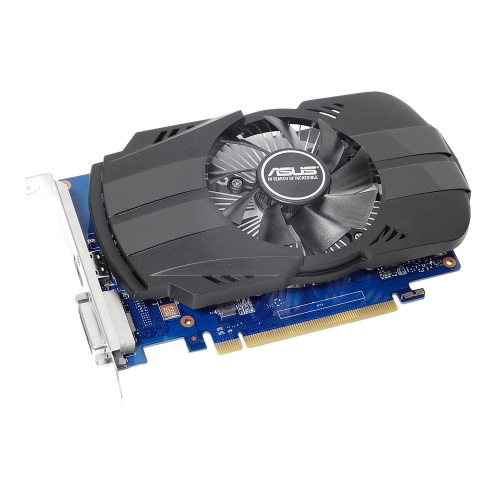

PH-GT1030-02G
Graphic Engine | NVIDIA® GeForce GT 1030
Bus Standard | PCI Express 3.0
OpenGL | OpenGL®4.5
Video Memory | 2GB GDDR5
Engine Clock | OC Mode - GPU Boost Clock : 1531 MHz , GPU Base Clock : 1278 MHz
Gaming Mode (Default) - GPU Boost Clock : 1506 MHz , GPU Base Clock : 1252 MHz
CUDA Core | 384
Memory Speed | 6008 MHz
Memory Interface | 64-bit
Resolution | Single-link DVI-D Digital Max Resolution : 1920 x 1200 | HDMI 2.0 Digital Max Resolution : 4096 x 2160 60Hz | DP 1.4 Digital Max Resolution : 7680 x 4320 60Hz | DP 1.4 Digital Max Resolution : 3860 x 2160 120Hz

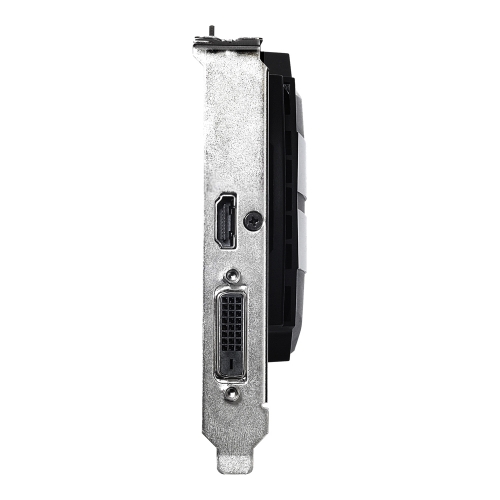

Interface | Yes x 1 (Native DVI-D) | Yes x 1 (Native HDMI 2.0b) | HDCP Support Yes (2.2)
Maximum Display Support | 3
NVlink/ Crossfire Support | No
Accessories | Yes x 1
Software | ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions | 7.3 " x 4.4 " x 1.4 " Inch | 18.4 x 11.1 x3.6 Centimeter
Recommended PSU | 300W
Slot | 2 Slot
Note | Single-link DVI-D Digital Max Resolution : 1920 x 1200 | HDMI 2.0 Digital Max Resolution : 4096 x 2160 60Hz | DP 1.4 Digital Max Resolution : 7680 x 4320 60Hz | DP 1.4 Digital Max Resolution : 3860 x 2160 120Hz
