Producto:

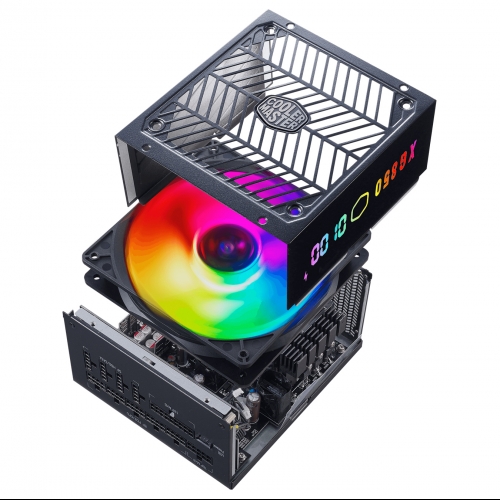

850XG PLUS PLATINUM
MPG-8501-AFBAP-XWO

Product Name XG850 Plus Platinum
ATX Version Intel ATX 12V Ver. 2.53
PFC Active PFC
Input Voltage 100-240V
Input Current 12-6A
Input Frequency 50-60Hz
Dimensions (L x W x H) 160 x 150 x 86mm
Fan Size 135mm
Fan Speed 1800 RPM
Noise @ 100% Load ≦ 25 dBA
Efficiency ≧ 92% @ Typical Load
80 PLUS Rating Platinum
ErP 2014 Lot 3 Yes
Operating Temperature 0 ~ 50℃
Power Good Signal 100-150 ms
Hold Up Time ≧ 16ms
MTBF >100,000 hours
Protections OPP/ OVP/ OCP/ UVP/ SCP/ OTP/
Surge & Inrush Protection
Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA
Connectors
ATX 24 Pin x1 = 1x (650mm)
EPS 4+4 Pin x1 = 1x (650mm)
EPS 8 Pin x1 = 1x (650mm)
SATA x12 = 3x (500 + 120 + 120 + 120mm)
Peripheral 4 Pin x4 = 1x (500 + 120 + 120 + 120mm)
PCI-e 6+2 Pin x6 = 3x (550 + 120mm)
USB Protocol 10P x1 = 1x (800mm)
