Silla para Racing | DynX
IXM-DX1-K-NN-1
Product Number IXM-DX1-K-NN-1 (Cockpit), IXM-RS1-KB-NN-1 (Racing Seat), IXM-WM1-KS-NN-1 (Side Mount), IXM-WM1-KT-NN-1 (Tray Mount)

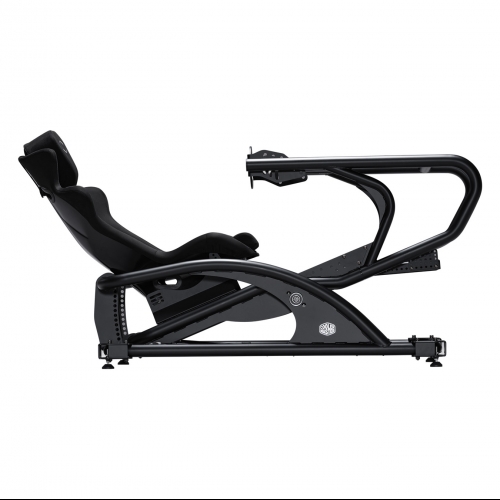

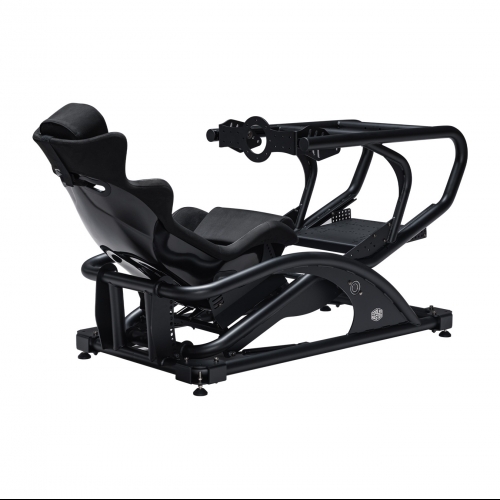

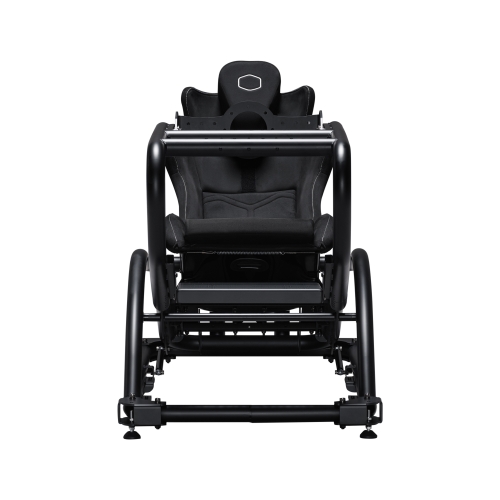

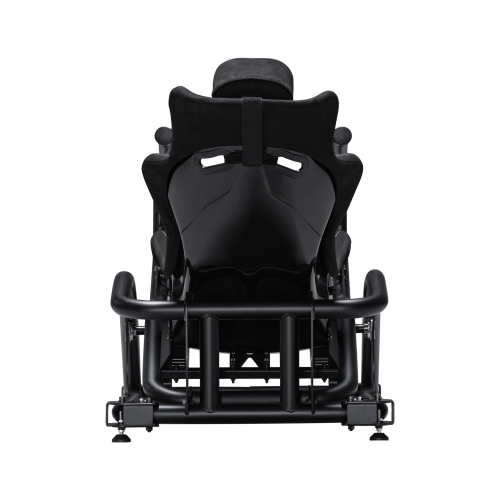

Component 1 Dyn X - Cockpit
Ergonomics Group 5 - 99th Percentile Men
Assembled Dimensions (Upmost Position) 1707mm x 756mm x 1044mm (LxWxH)
Assembled Dimensions (Downmost Position) 1591mm x 756mm x 998mm (LxWxH)
Ready for Motion Actuator System Yes
Buttkicker Mount Yes

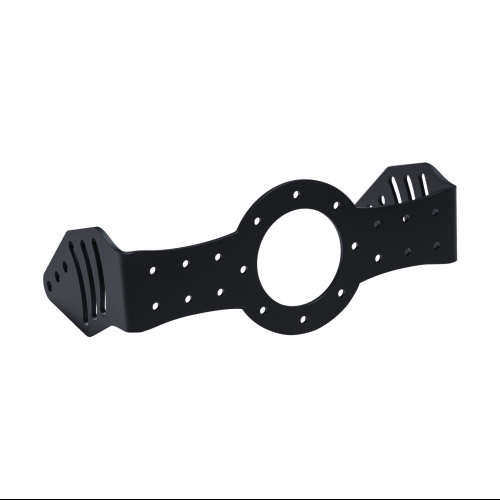

Included Steering Wheel Mount Front Mount
Number of Driving Positions 14
Frame Tubing Material Steel (JIS STKM 13A)
Frame Tubing Diameter 50.8mm
Frame Tubing Wall Thickness 2mm
Gusset Thickness 5mm
Steering Wheel Mount Material (All Mounts) Steel
Steering Wheel Mount Material Thickness (All Mounts) 6mm
Pedal Tray Material Aluminum (5052)
Pedal Tray Material Thickness 5mm
Seat Mount Material Steel
Seat Mount Material Thickness 3mm
Steering Wheel Slide (Forward/Back) 300mm
Steering Wheel Mounting Positions (Front & Side Mount) 6 (3 regular + 3 with mount inverted)
Steering Wheel Mount Degrees of Adjustment (Front & Side Mount) Position 1: 50°, Position 2: 47°, Position 3: 44°, Total: 80° (regular + inverted)
Steering Wheel Mount Height Adjustment (Front & Side Mount) 81mm (6 positions)
Steering Wheel Mounting Positions (Tray Mount) 4 (2 regular + 2 with mount inverted)
Steering Wheel Mount Degrees of Adjustment (Tray Mount) Position 1: 26°, Position 2: 24°, Total: 60° (regular + inverted)
Steering Wheel Mount Height Adjustment (Tray Mount) 140mm (4 positions)
Pedal Tray Slide (Forward/Back) 400mm
Pedal Tray Tilt (Up/Down) ± 45°
Pedal Tray Lift (Up/Down) ±100mm
Seat Slide (Forward/Backward) 150mm
Seat Tilt (Up/Down) 3 - 27°
Seat Lift (Up/Down) 30mm
Number of Frame Tilt Positions 14
Frame Tilt 3 - 22°
Combined Frame/Seat Tilt 6 - 49°

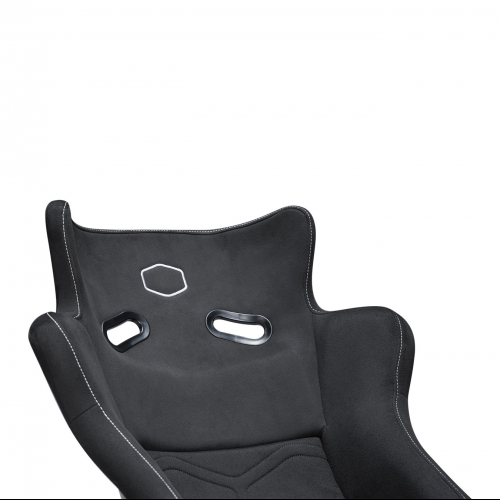

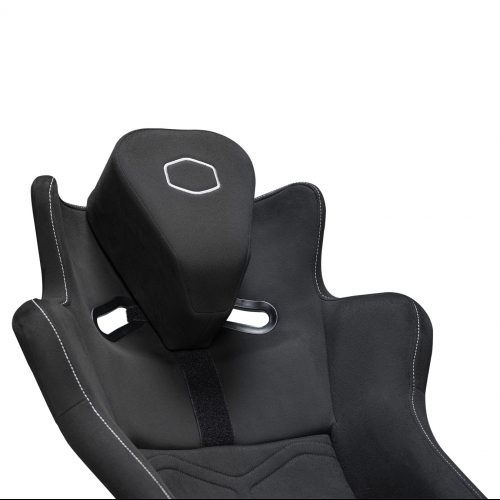

Component 2 Dyn X - Racing Seat
Seat Shell Material Fiberglass Reinforced Plastic (FRP)
Seat Fabric Material Premium Synthetic Suede (Eco-suede)
Seat Padding Multi-density Foam / Shock-absorbent Foam
Harness Slots 5
Headrest Detachable and Adjustable

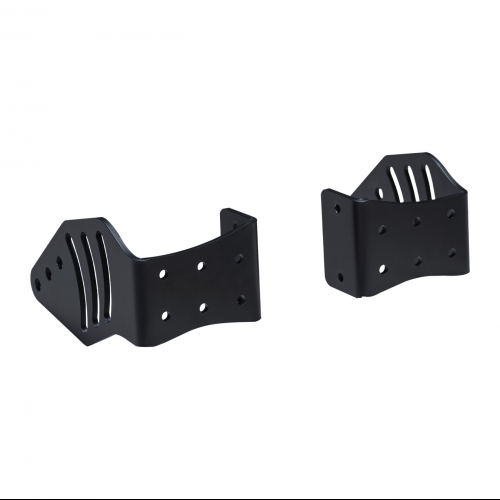

Component 3 Dyn X - Steering Wheel Mounts - Side Mount
Side Mount - Supported Mounting Style Side-mounted
Side Mount - Material 6mm mild steel plate
Side Mount - Dimensions 132.3mm x 135.5mm x 234.4mm
Side Mount - Degrees of Adjustment Position 1: 50°, Position 2: 47°, Position 3: 44°, Total: 80° (regular + inverted)
Side Mount - Height Adjustment 81mm (6 positions)

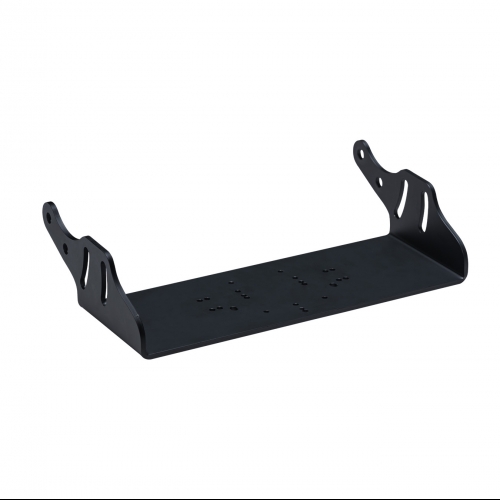

Component 4 Dyn X - Steering Wheel Mounts - Tray Mount
Tray Mount - Supported Mounting Style Desk-mounted
Tray Mount - Material 6mm mild steel plate
Tray Mount - Dimensions 435.6mm x 106.2mm x 249.0mm
Tray Mount - Degrees of Adjustment Position 1: 26°, Position 2: 24°, Total: 60° (regular + inverted)
Tray Mount - Height Adjustment 140mm (4 positions)
