Producto:

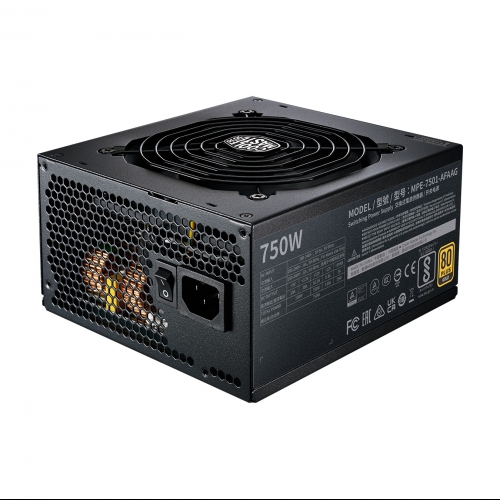

750W MWE GOLD V2 ATX 3.0 READY
MPE-7501-AFAAG-3

Model MPE-7501-AFAAG-3
ATX Version ATX 12V Ver. 3.0
PFC Active PFC
Input Voltage 100-240V
Input Current 10-5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 160 x 150 x 86 mm
Fan Size 120mm
Fan Bearing HDB
Efficiency ≥90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 - 150 ms
Hold Up Time ≥ 16ms
MTBF >100,000 Hours
Protections UVP, OVP, OPP, OTP, SCP, OCP
Regulatory TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 12
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 4
12VHPWR Connector 1 (1 to 3)
Series MWE Gold Series
80 Plus Gold
Modular Fully Modular
Category Above 750W
