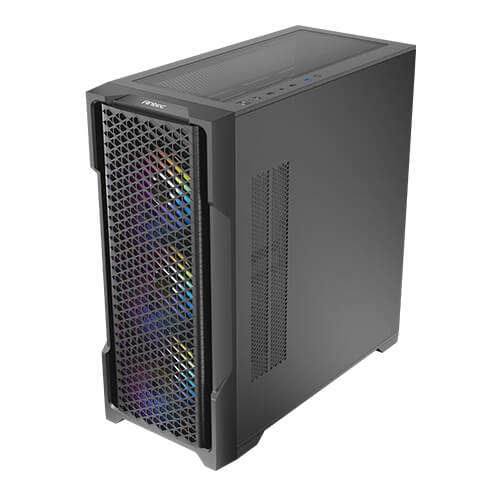

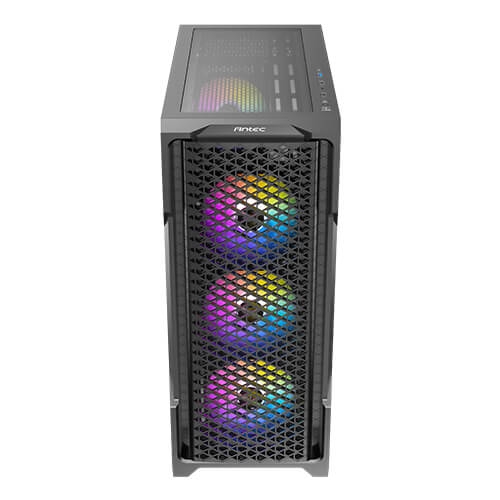

AX90
Dimensions 473 x 210 x 486mm(DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, M-ATX, ITX
Front Access & Controls Power,Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , MIC / HD-AUDIO

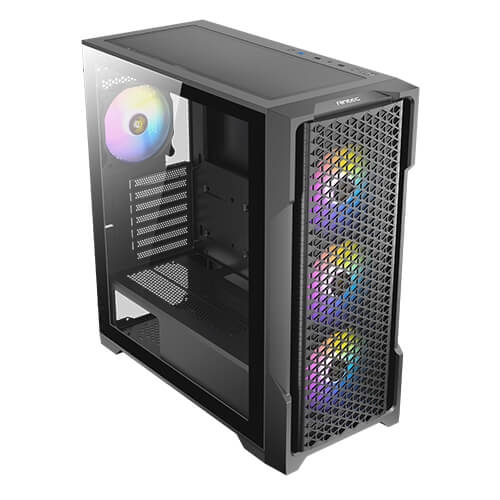

Side Panel 4MM Tempered glass
Drive Bays
Expansion Slots 7
3.5" / 2.5" 2 / 1
2.5" 2
Fan Support
Front 3 x 120mm / 3 x 140mm
Top 3 x 120mm / 2 x 140mm
Power supply 2 x 120mm
Side 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear
Radiator Support
Front 120 / 140 / 240 / 280 / 360mm
Top 120 / 140 / 240 / 280 / 360mm
Side 120 / 240mm
Rear 120mm
Clearance
Max GPU Length ≤ 385mm
Max CPU Cooler Height ≤ 160mm
Max PSU Length (Include cable) ≤ 220mm(with HDD)
(Include cable) ≤ 410mm(without HDD)
Miscellaneous
Dust Filter Front / Top / Bottom / Right Hand Side
Net Weight 6.77 Kgs
Gross Weight 7.93 Kgs
Warranty 1 Year
