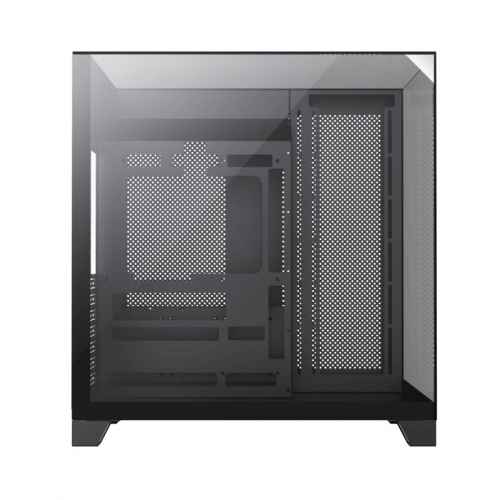

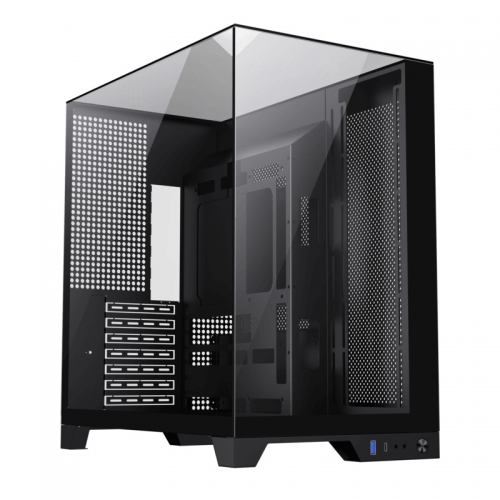

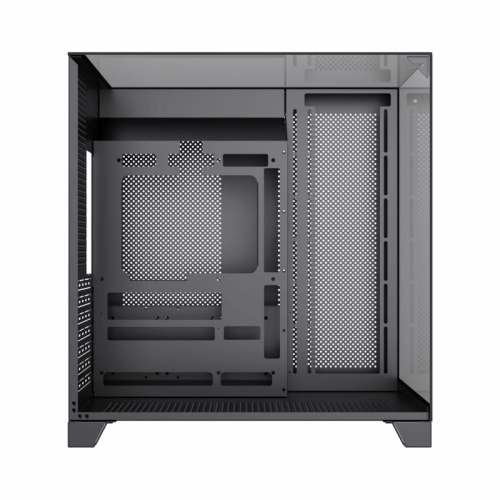

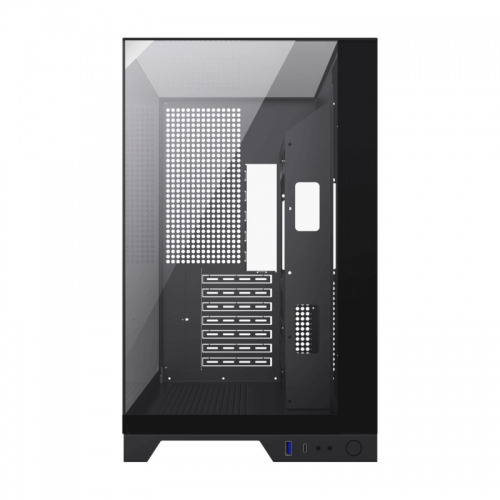

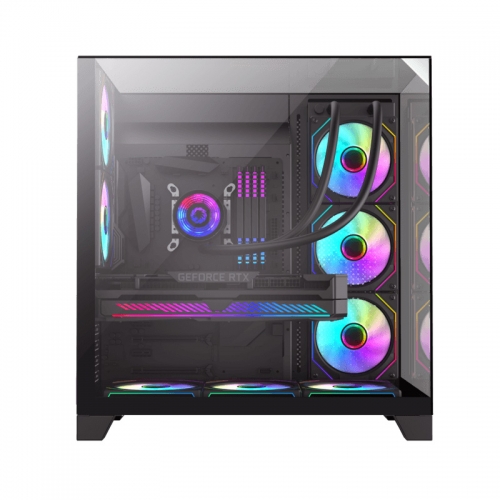

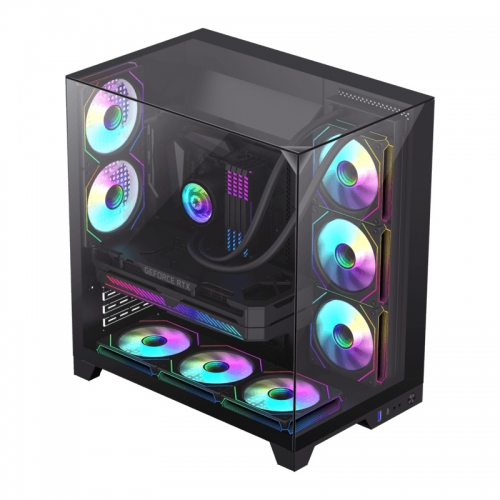

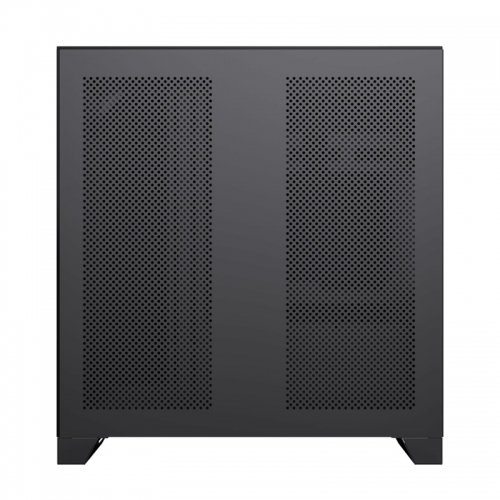

Infinity Plus Black
Infinity Plus BK SPECIFICATION
Form Factor (Midi, Micro, Mini ITX, Full) ATX
Chassis SPCC : 1.2mm
PSU Form Factor ATX
M/B Form Factor ATX、M-ATX、ITX
Front Panel Tempered Glass
Top Panel Tempered Glass
Side Panel Left Tempered Glass
Right Metal cover
Internal Drive Bay(s) 3.5" (HDD) *1
2.5" (SSD) *3
I/O Buttons *2
USB2.0 Port(s) *0
USB3.0 Port(s) *0
USB3.1 Port(s) *1 (Gen1)
Audio Support *1 (COMBO AUDIO)
RGB Controller Optional
Controller max. fans *8
RGB Controller max. LED strips *0
Remote (IR or RF) Optional
Cooling Fan
Support Front *0
Top *0
Rear 2x120mm (Fan optional)
M/B Cover 3x120mm, 2x140mm (Fan optional)
PSU Cover 3x120mm (Fan optional)
Water Cooling Support
(Radiator Size) Front *0
Top *0
Rear 120mm
M/B Cover 120mm, 240mm,280mm,360mm
Dust Cover Bottom cover with dust filter
Slots *7
Carton Logo GAMEMAX
Dimensions Chassis (L)418*(W)272*(H)454mm
Full Case (inc Fascia) (L)418*(W)272*(H)454mm
Carton (L)478*(W)332*(H)514mm
VGA Card Length Up to 400mm
CPU Cooler Height 160mm
SPS Length 190mm
Cable Management Depth 45mm
