AX65 ARGB
main spec
Dimensions 400 x 200 x 449mm(DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, HD-AUDIO
Side Panel 4mm Tempered glass
Drive Bays
Expansion Slots 7
3.5" / 2.5" 2 / 1
2.5" 2
Fan Support

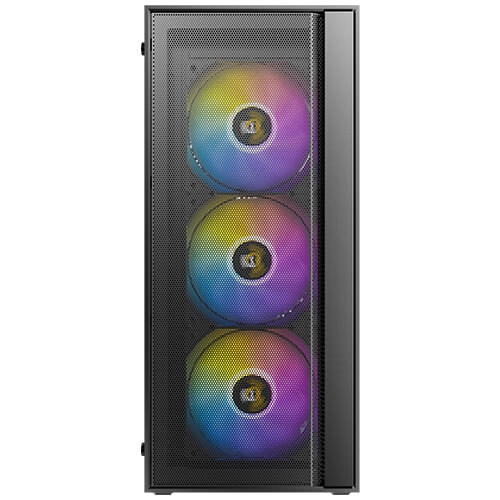

Front 3 x 120mm
Top 2 x 120mm
Power supply 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 3 x 120mm ARGB 3-Pin fans in the front + 1 x 120mm ARGB 3-Pin fan at the rear
Radiator Support
Front 120 / 240 / 360mm
Clearance
Max GPU Length ≤ 345mm (When the fan is installed in the front)
≤ 320mm (When the fan is installed at the rear)
≤ 290mm (when a 360mm radiator is installed in the front)
Max CPU Cooler Height ≤ 160mm
Max PSU Length (Include cable) ≤ 165mm (with HDD)
(Include cable) ≤ 205mm (with HDD moves to the left)
(Include cable) ≤ 345mm (without HDD)
Miscellaneous
Dust Filter Top / Bottom
Net Weight 4.59 Kg
Gross Weight 5.43 Kg
Warranty 1 Year
