PRODUCTO:

ELITE 502
E502-KGNN-S00

Product Name ELITE 502
Product Name ELITE 502 White
Model Number ELITE 502: E502-KGNN-S00
Model Number ELITE 502 White: E502-WGNN-S00
Color(s) ELITE 502: Black / ELITE 502 White: White
Materials - Exterior Steel
Materials - Right Side Panel Steel
Materials - Left Side Panel TG
Dimensions (L x W x H) 474 x 230 x 481 mm(Incl. Protrusions), 435 x 230 x 465 mm(Excl. Protrusions)
Volume (incl. Protrusions) 49.73 L
Motherboard Support ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management)
Expansion Slots 7
5.25" Drive Bays N/A
3.5" Drive Bays 2
2.5" Drive Bays 2 (Max.6)

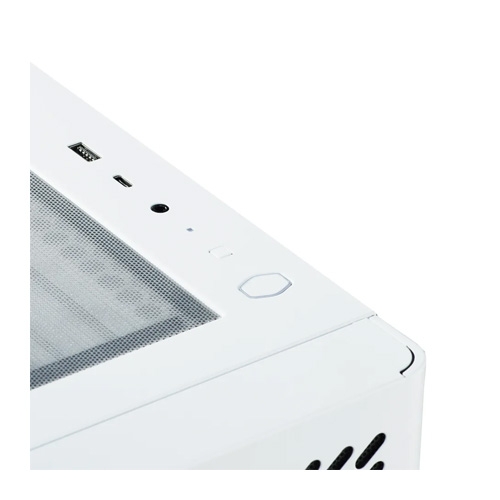

I/O Panel - USB Ports 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C​
I/O Panel - Audio In / Out 3.5 mm Combo x 1
Fan Support - Front (Filtered) 140 mm x 3 / 120 mm x 3
Fan Support - Top (Filtered) 140 mm x 2 / 120 mm x 3
Fan Support - Rear 1x 120mm

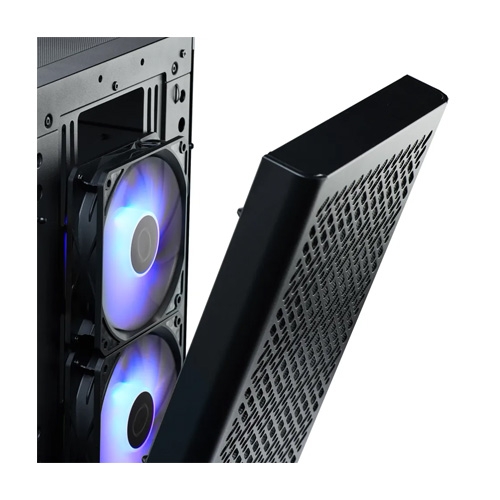

Pre-installed Fans - Front 3x 120mm ARGB Fans
Pre-installed Fans - Top N/A
Pre-installed Fans - Rear N/A
Radiator Support - Front 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm)
Radiator Support - Top 120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear 120mm
Clearance - CPU Cooler 170mm
Clearance - PSU 170mm, 210mm (w/o HDD Cage)
Clearance - Graphics Card (installed 3.5"HDD BRK) 360 / 410 mm (w/o front radiator)
Cable Routing - Behind Motherboard Tray 33-35 mm
Dust Filters Top, Front, Bottom
Power Supply Support ATX
Warranty 2 years
Series Elite Series
Size Mid Tower
