Model MPS-K001-AFBP-NBEU
ATX Version ATX 12V Ver. 3.1
PFC Active PFC
Input Voltage 115 - 240V (115 - 240V for 1600W / 200 - 240V for 2000W)
Input Current 16A (Max)
Input Frequency 50-60Hz
Dimensions (L x W x H) 180 x 150 x 86 mm
Fan Size 120mm
Fan Bearing FDB
Fan Speed 2500 RPM
Efficiency ≥ 94% @ Typical Load
80 PLUS Rating 80 PLUS Platinum of EU Internal
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 - 150 ms
Hold Up Time ≥ 16ms
MTBF >100,000 Hours
Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
Regulatory cUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)

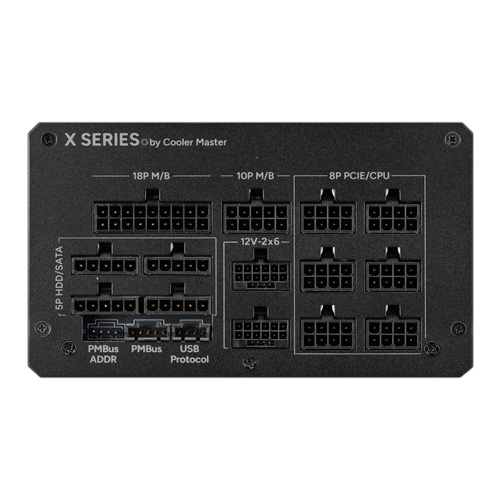

ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 12
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 4
12V-2x6 Connectors 2
USB 10P Connector 1
PMBus 5 Pin Connector 1
Series X Series
80 Plus Efficiency Platinum
Modular Fully Modular
Category Above 750W
Form Factor ATX
Watts 2000W
