Product Name ELITE GOLD 850

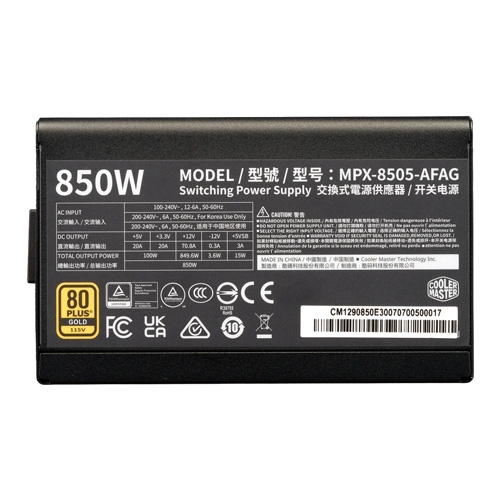

Model MPX-8505-AFAG
ATX Version ATX 12V Ver. 3.1
PFC Active PFC
Input Voltage 100-240V
Input Current 6 ~ 12A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing Rifle bearing
Efficiency ≥90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-40°C
Power Good Signal 100 - 150 ms
Hold Up Time ≥ 11ms @ 100% Load
MTBF >100,000 hours​ @ 25℃ ambient
Protections UVP / OVP / OPP / OTP / SCP
Regulatory cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
ATX 24 Pin Connectors x1 = 1 (550mm)
EPS 4+4 Pin Connectors x1 = 1 (600mm)
EPS 8 Pin Connector x1 = 1 (600mm)
SATA & Peripheral 4 Pin Connectors X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
PCI-e 6+2 Pin Connectors x3 = 1 (500+120mm), 1 (500mm)
12+4 Pin Connectors x1 = 1 (650mm)
Series Elite Series
Form Factor ATX
Watts 850W
Modular Fully Modular
80 Plus Efficiency Gold
