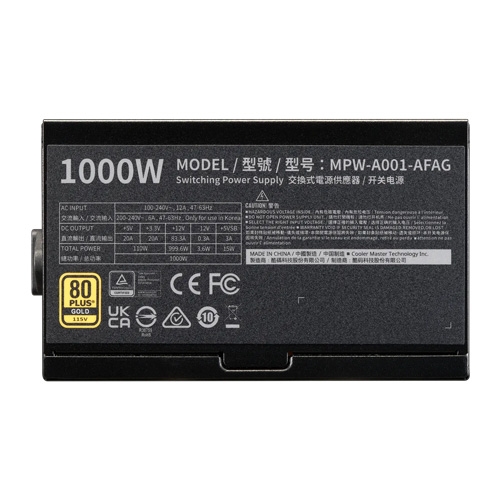

Product Name ELITE GOLD 1000
Model MPW-A001-AFAG
ATX Version ATX 12V Ver. 3.1
PFC Active PFC
Input Voltage 100-240V
Input Current 6 ~ 12A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing FDB
Efficiency ≥90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-40°C
Power Good Signal 100 - 150 ms
Hold Up Time ≥16ms at 80% Load
MTBF >100,000 hours​ @ 25℃ ambient
Protections UVP / OVP / OPP / OTP / SCP
Regulatory cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
ATX 24 Pin Connectors x1 = 1 (600mm)
EPS 4+4 Pin Connectors x2 = 2 (700mm)
SATA Connectors x9 = 3 (500+100+100mm)
Peripheral 4 Pin Connectors x3 = 1 (500+100+100mm)
PCI-e 6+2 Pin Connectors x6 = 3 (550+120mm)
12+4 Pin Connectors x1 = 1 (600mm)
Series Elite Series
Form Factor ATX
Watts 1000W
Modular Fully Modular
80 Plus Efficiency Gold
