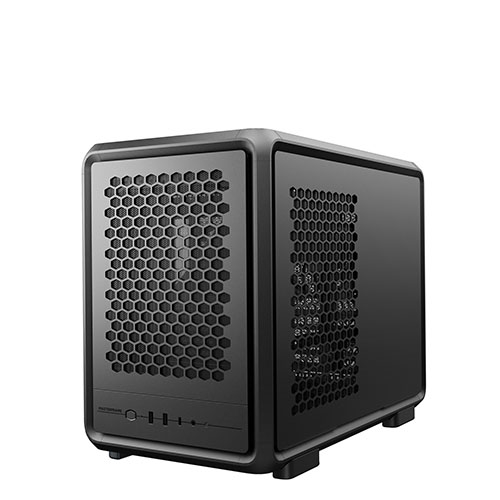

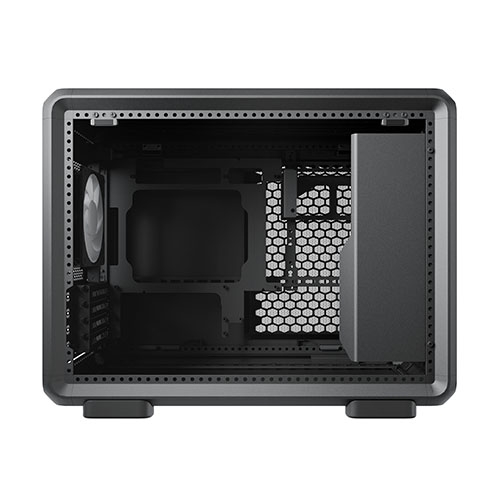

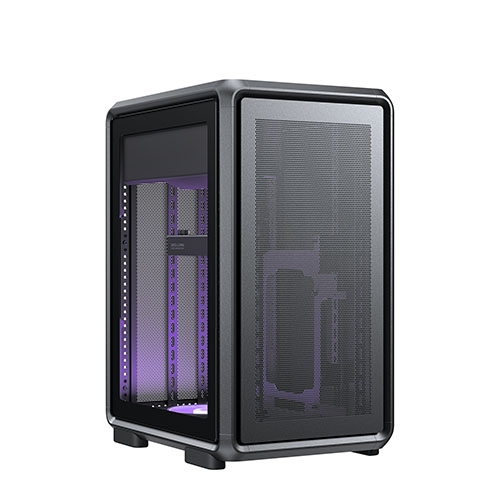

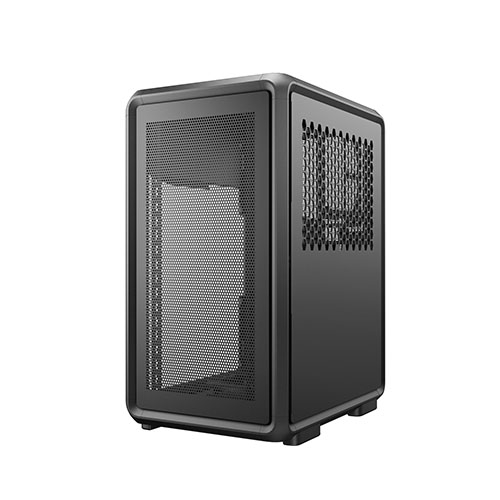

Product Name MasterFrame 400 Mesh
Color(s) Black / Silver
Model Number Black: MF400M-KHNN-S00
Model Number Silver: MF400M-SHNN-S00
Materials AL+ SGCC + TG / Mesh
Dimensions (L x W x H) 471 x 261 x 373.8 mm (Incl. Protrusions), 471 x 261 x 361 mm (Excl. Protrusions)
Volume 44.37 L (w/o protrusions), 46 L (with panel, protrusions and feet)
Motherboard Support Mini-ITX, Micro-ATX
PCI Expansion Slots 4
Drive Bays - 5.25" ODD N/A
Drive Bays - 3.5" HDD 1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.)
Drive Bays - 2.5" SSD 1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.)
I/O Panel - USB Ports 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
I/O Panel - Audio In / Out 1 x 3.5 Mic / Audio Combo Jack
Pre-installed Fans - Rear 1x SickleFlow 120 mm ARGB Black / 1x SickleFlow 120 mm ARGB White
Fan Support - Front 2 x 120mm / 1 x 140mm*, 1 x 180mm*, 1 x 200mm* (*Conditional Support)
Fan Support - Top 3 x 120mm / 2 x 140mm / 2 x 180mm*, 2 x 200mm* (*Fan thickness ≤ 25.5mm)
Fan Support - Rear 1x 120mm
Fan Support - Bottom 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm, and all fans up to 30mm thick.
Radiator Support - Front N/A
Radiator Support - Top 240 / 280 / 360 mm
Radiator Support - Rear 120 mm
Radiator Support - Bottom N/A
Clearances - CPU Cooler 190 mm
Clearances - Power Supply 160 mm
Clearances - Graphics Card 390 mm
Cable Routing - Behind Motherboard Tray 43 mm
Accessory Graphics Card Holder
Dust Filters Front, Side
Power Supply Support ATX
Warranty 2 years
Series MasterFrame Series
Size Mid Tower
