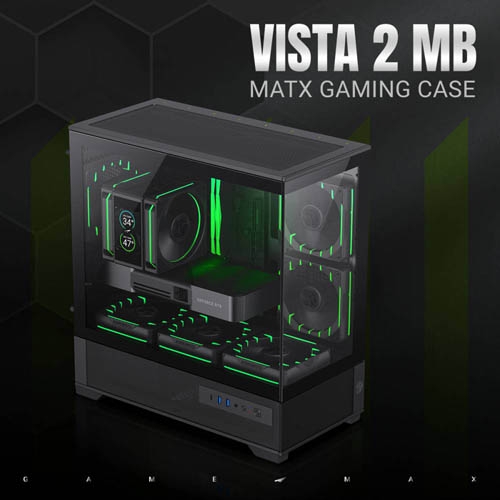

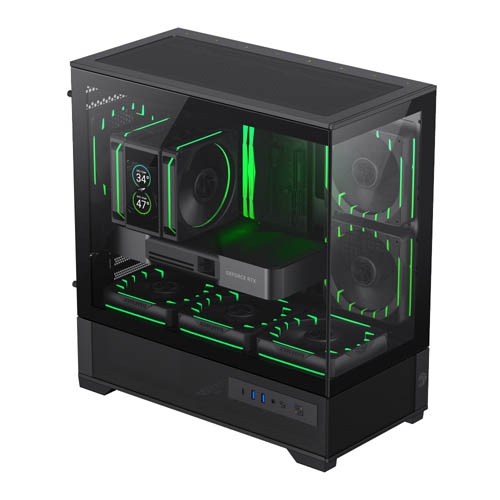

Form Factor: Mini Tower
Chassis: SPCC :0.6mm
PSU Form Factor Bottom/ATX
M/B Form Factor: M-ATX、ITX

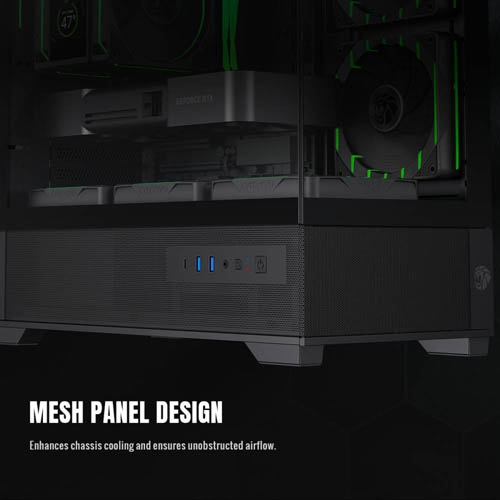

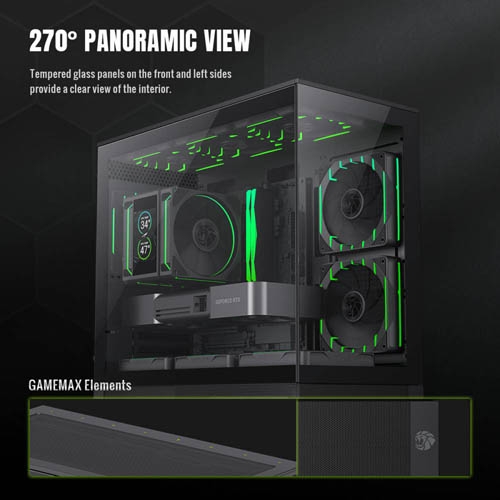

Front Panel: Tempered Glass,Mesh
Top Panel: Metal cover
Side Panel:

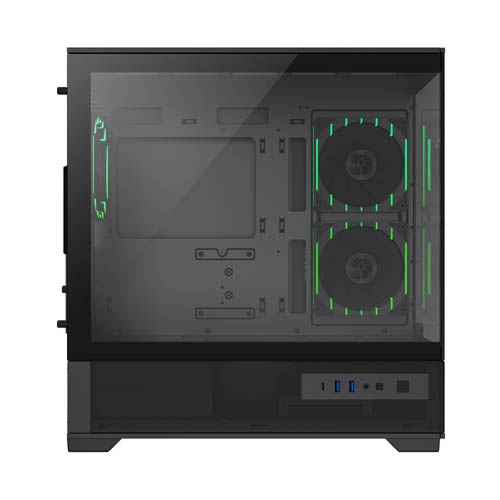

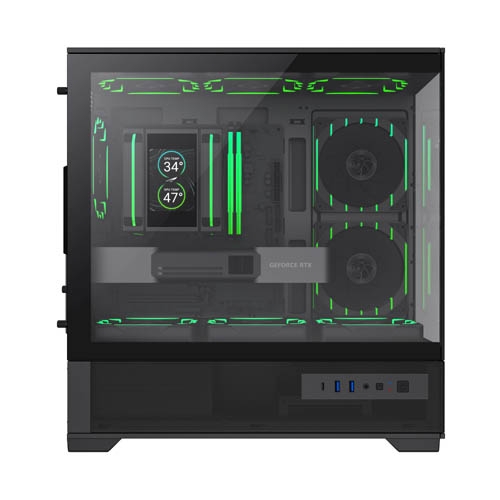

Left: Tempered Glass

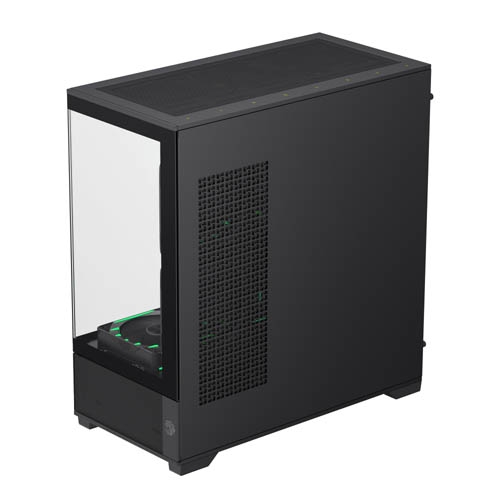

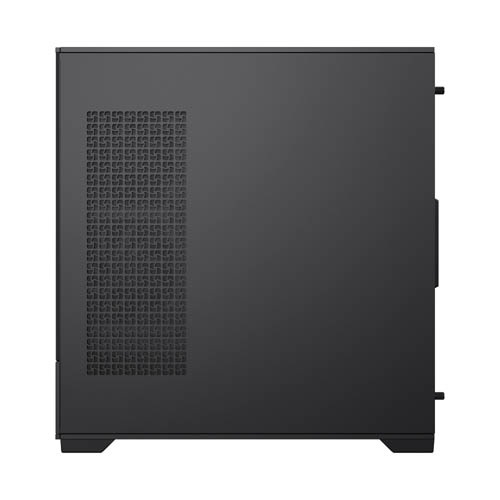

Right: Metal cover
External Drive Bay(s):
5.25”(ODD): *0
3.5”: *0
Internal Drive Bay(s):
3.5" (HDD): 2
2.5" (SSD): 2
2*3.5"HDD+1*2.5"SSD or 1*3.5"HDD+2*2.5"SSD
I/O:
Buttons: *2(POWER, LED SW)
USB 2.0 Port(s): *0
USB 3.2 Type-A Port(s): *2(Gen1)
USB 3.2Type-C Port(s): *1(Gen2)
Audio Support: *1(Combo AUDIO)
Card Reader (Support): *0
P-Lock： *0
RGB Controller： *1(V5.0 PWM ARGB HUB)
Controller Max Fans: *6
RGB Controller max. LED strips： *6
Remote (IR or RF)： *1

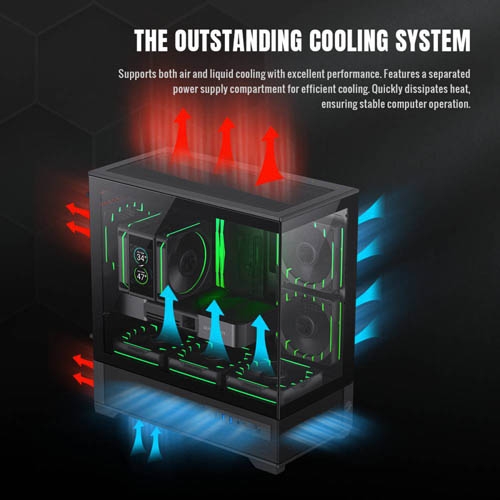

Cooling Fan Support:
Front: *0
Top: 3x120mm ,2x140mm (Fan optional)
Rear: 1x120mm (Tornado T12 ARGB)

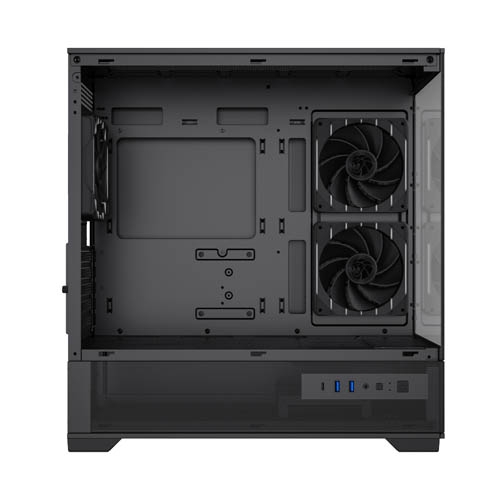

M/B Cover： 2x120mm(Tornado T12 ARGB-R)
PSU Cover： 3x120mm (Fan optional)
Water Cooling Support
(Radiator Size):
Front: *0
Top: 120mm, 140mm,240mm,280mm,360mm
Rear: 120mm
M/B Cover：
Dust Cover: Dust mesh on the top and bottom

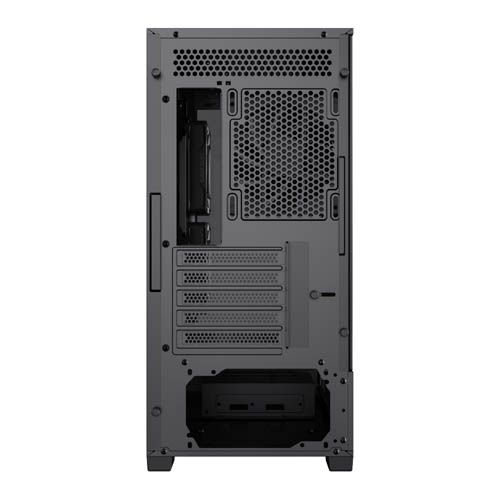

Slots: *5
Dimensions:
Chassis: (L)415*(W)210*(H)435mm
Full Case (Inc Fascia): (L)433*(W)210*(H)450mm
Carton: (L)517*(W)282*(H)496mm
Net Weight(kg): 6.3
Gross Weight(kg): 7.55
VGA Support: up to 410mm
Vertical Graphics Support No
CPU Cooler Height: up to 165mm
SPS Length: up to 265mm
Cable Management Depth: 25mm
