Model name GAMEMAX GZ 1000 GOLD Power Supply
General
ATX Version ATX 12V Ver. 3.1
PFC Active PFC
Input Voltage 110-240V
Input Current 15-8A
Input Frequency 50-60Hz
Dimensions (L x W x H) 160 x 150 x 86mm

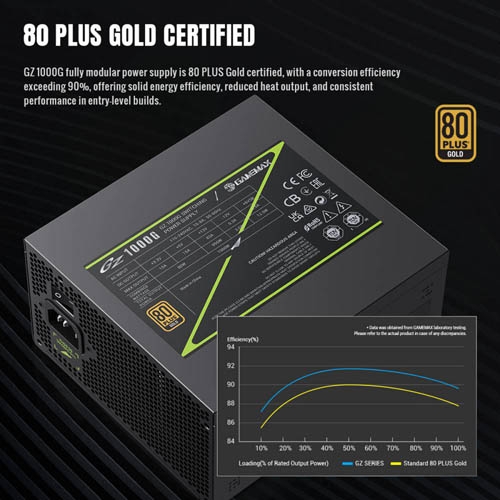

Efficiency 90%
80 PLUS Rating Gold
Protections OPP / OVP / OCP / OTP/ UVP / SCP
Safety Certificate CE / cTUVus / TUV / CB / RoHS BSMI / CCC / EAC / RCM / UKCA / BIS / KC (based on region's request.)
Warranty 5 Years
Fan
Size 135mm
Bearing HDB
0dB Mode Yes
Cables
Type Embossed Flat
Module Fully Modular
ATX 24 Pin MB 24(20+4) Pin x 1 (650mm)
CPU 4+4 Pin CPU 8(4+4) Pin x 1 (700+100mm)
PCI-e 12+4 Pin 12V-2x6 (12+4) Pin x 1 (650mm)
PCI-e 6+2 Pin PCIe 8(6+2) Pin x 2 (550mm), PCIe 8(6+2) Pin (550+75mm)
SATA 4SATA x2 (500+150+150+150mm), 2SATA(500+150mm)
Peripheral PATA x1 (450+150+150mm+FDD 150mm)
