AC INPUT: 100-240 VAC 15-5A 50-60Hz
DC +3.3V +5V +12V -12V +5VSB
Output 20A 20A 60A 0.5A 2.5A
Max 800W

Dimensions: 160mm x 85mm x 150mm (W x H x D)
Input Voltage: 100-240 VAC
Input Current: 15-5A
Input Frequency Range: 50-60Hz
PFC: Active PFC (>.99)
Power Good Signal: 100-150 ms
Hold Up Time: >9ms
Efficiency: > 82% (88% max)
MTBF: > 100,000 Hours
Protection: OPP / OVP/ UVP / OCP/ SCP / OTP / NLP / SIP / OLP / NLO
Power: 800W
Operation Temperature: 0-40C
Safety: CE / FCC / CB

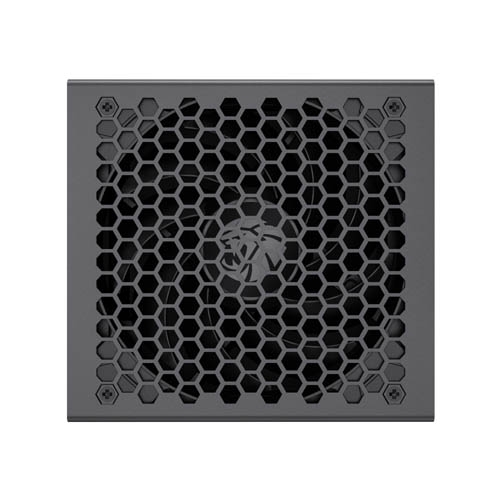

Cooling: 140mm Ultra Silent Fan
Noise: <25dBa
80 Plus Certified: Yes - 80 Plus Bronze

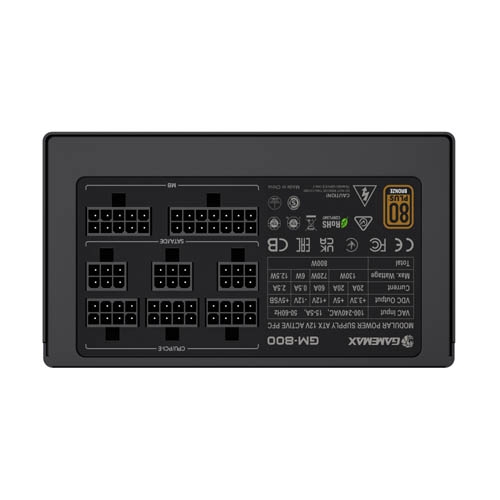

20+4 mainboard 1
CPU 12V 8 (4+4) 2
PCIe 8(6+2) 4
SATA 6
IDE 2 PATA
