Producto:

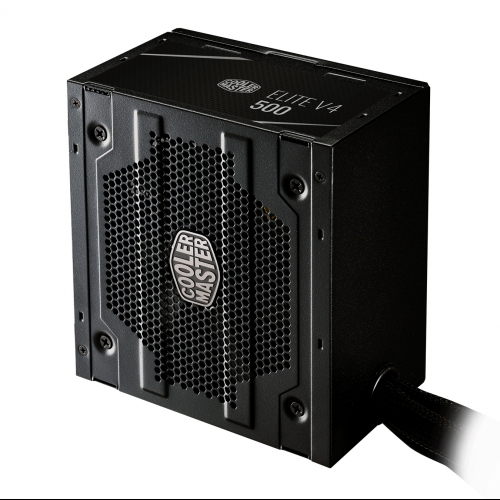

500W Elite V4 230V A/WO Cable
MPE 5001 ACABN WO

MODEL: MPE-5001-ACABN

ATX VERSION: ATX 12V Ver. 2.41

PFC: Active PFC

INPUT VOLTAGE: 200-240Vac

INPUT CURRENT: 5A

INPUT FREQUENCY: 50-60Hz

DIMENSIONS (L X W X H): 140 x 150 x 86 mm

FAN SIZE: 120mm

FAN BEARING: Sleeve Bearing

EFFICIENCY: 85% @ Typical Load

80 PLUS RATING: 80 PLUS Standard 230V EU

ERP 2014 LOT 3: Yes

OPERATING TEMPERATURE: 40°C

POWER GOOD SIGNAL: 100 - 500 ms

HOLD UP TIME: >14ms at 100% load

MTBF: >100,000 Hours

PROTECTIONS: OVP, OPP, OTP, SCP, UVP

REGULATORY: TUV, cTUVus, CE, BSMI, FCC, EAC, RCM, KCC, CCC, CB

MB 24-PIN CONNECTORS: 1

EPS 4+4 PIN CONNECTORS: 1

SATA CONNECTORS: 5

PERIPHERAL 4-PIN CONNECTORS: 3

PCI-E 6+2 PIN CONNECTORS: 2

SERIES: Elite Series

80 PLUS: Standard

MODULAR: Non Modular

WATTAGE: 500 to 750W
