En Stock SKU: SKU

750W HCG Bronze EC


Model    HCG750 Bronze

Type    ATX 12V 2.4

Modular    Fully Modular

Dimension (W x L x H)    165(L)*150(W)*86(H)

Input Voltage    100-240 VAC ±10%

Input Current    12A-6A

Input Frequency Range    50Hz-60Hz

PFC    Active PFC (>0.9 typical)

Power Good Signal    100-500ms

Efficiency    89% Typically

Protection    OCP/OVP/SCP/OPP/OTP/SIP/NLO

Output Capacity    750W

Operation Temperature    0~40°C

Regulatory    cTUVus/TUV/CB/RCM/CE/EAC/FCC

Fan    135mm DBB Fan

Certifications    80 Plus Bronze

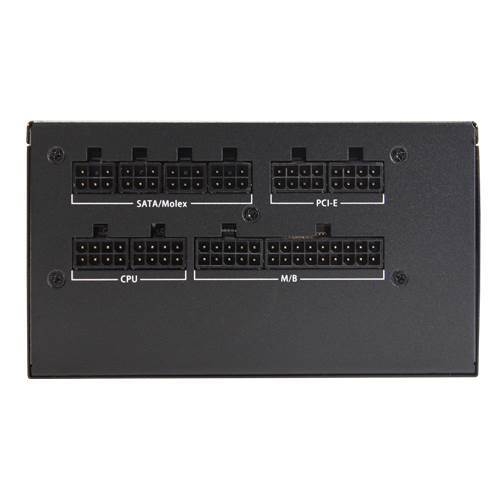

Connector

-1 x MB 24(20+4) Pin

-2 x 8(4+4) Pin EPS 12V

-4 x 8(6+2) Pin PCI-E

-9 x SATA

-4 x Molex

-1 x FDD

Net Weight    1.62 kgs

Gross Weight    2.78 kgs
