Producto:

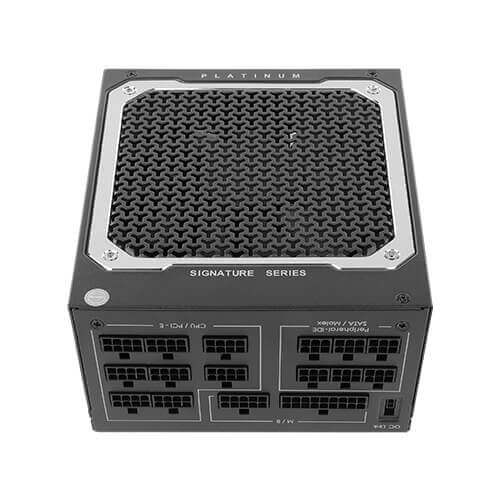

1000W SIGNATURE PLATINUM

Product Name    SP1000 Platinum

Model Name    X8000A505-18

Type    ATX

Modular    Fully

Dimension (W x L x H)    150 x 170 x 86mm

Input Voltage    100-240

Input Current    13A ~ 6.5A

Input Frequency Range    47Hz ~ 63Hz

PFC

-APFC

-PFC at half / full load:

->0.95 at AC 110v 60Hz(typical)

->0.90 at AC 230v 50Hz(typical)

Power Good Signal    100 ~ 500mS

Efficiency    At 20% / 50% / 100% load AC 115V internal,

the power efficiency should be at least 90% / 92% / 89%.

Protection    OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO

Output Capacity    1000W

Operation Temperature    0 ~ 40°C

Regulatory    cTUVus / TUV / CB [IEC62368 Compliant] / CE /

FCC / BSMI / 3C / RCM

Fan    135 x 135 x 25(mm) FDB Silent Fan

Certifications    80 Plus Platinum

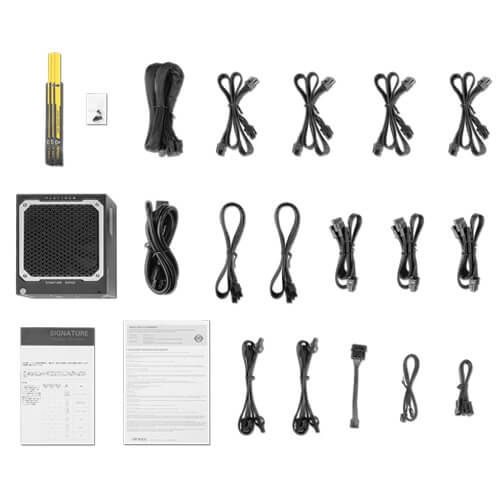

Connector

-1 x MB 24(20+4) Pin

-2 x 8(4+4) Pin EPS 12V

-8 x 8(6+2) Pin PCI-E

-14 x SATA

-5 x Molex

-1 x FDD

Net Weight    2.11 Kgs

Gross Weight    3.93 Kgs
